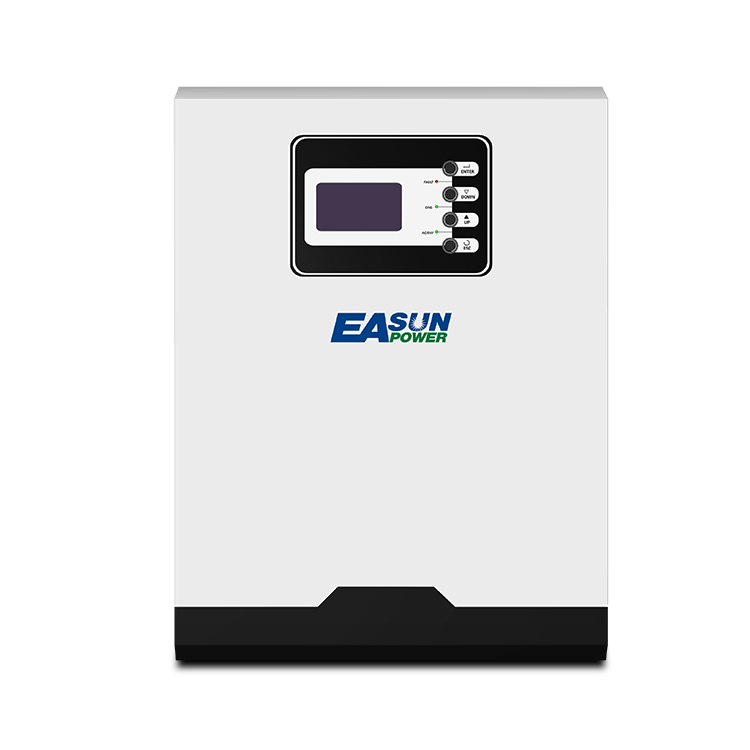

Easun 230VAC 5.5KW MPPT Solar Inverter 48V Lithium Battery Compatible High PV Input Voltage

Description Easun 230VAC 5.5KW MPPT Solar Inverter 48V Lithium Battery Compatible High PV Input Voltage Item Specification: Model SMR II 3K 24V SMR II 5.5K 48V Rated Power 3000VA/3000W 5500VA/5500W INPUT Voltage 230VAC Selectable Voltage Range 170-280VAC(For Personal Computers);90-280VAC(For Home Appliances) Frequency Range 50Hz/60Hz(Auto sensing) OUTPUT AC Voltage Regulation(Batt. Mode) 230VAC±5% Surge Power 6000VA 11000VA Efficiency(Peak) Up to 93.5% Transfer Time 10ms(For Personal Computers);20ms(For Home Appliances) Waveform Pure Sine Wave BATTERY     Battery Voltage 24VDC 48VDC Floating Charge Voltage 27VDC 54VDC Overcharge Protection 33VDC 63VDC SOLAR CHARGER & AC CHARGER Maximum PV Array Open Circuit Voltage 500VDC 500VDC Maximum PV Array Power 5500W 5500W MPPT Range @ Operating Voltage 120～450VDC 120～450VDC Maximum Solar Charge Current 100A 100A Maximum AC Charge Current 80A 80A Maximum Charge Current 100A 100A PHYSICAL Dimension,D×W×H(mm) 100×300×440 Net Weight(kgs) 9 10 Communication Interface USB/RS232 ENVIRONMENT Humidity 5% to 90% Relative Humidity(Non-condensing) Operating Temperature -10℃ to 50℃ Storage Temperature -15℃ to 60℃   More Images:
