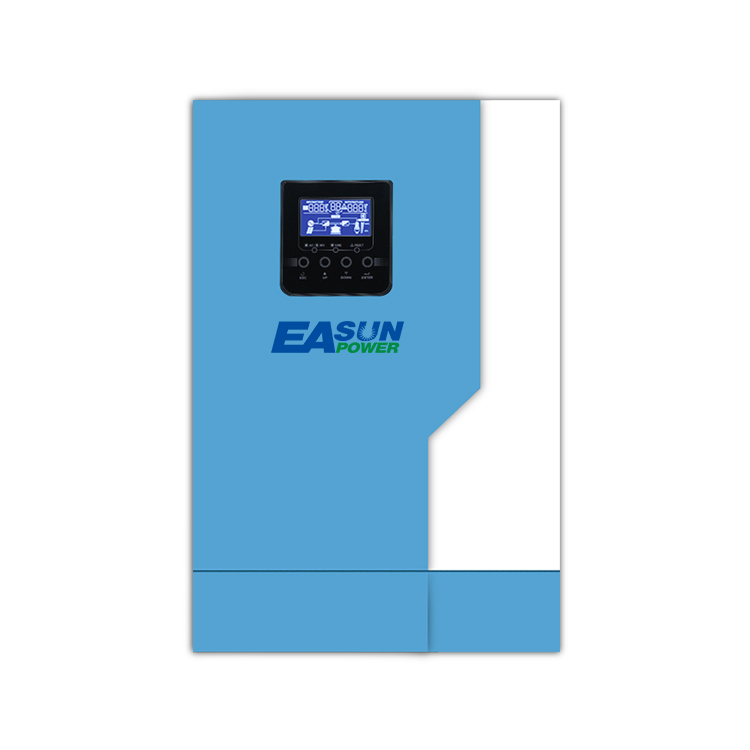

230VAC 3.5-5.5KW MPPT Solar Inverter High PV Input Voltage Range 120~500VDC WIFI Optional

Description 230VAC 3.5-5.5KW MPPT Solar Inverter High PV Input Voltage Range 120~500VDC WIFI Optional Item Specification: MODEL Isolar SML III 3.5KW Isolar SML 5.5KW Rated Power 3500VA/3500W 5500VA/5500W INPUT Voltage 230VAC Selectable Voltage Range 170-280VAC(for personal computers) 90-280VAC(for home appliances) Frequency Range 50Hz/60Hz (Auto sensing) OUTPUT AC Voltage Regulation (Batt.Mode) 230VAC±5% Surge power 7000VA 11000VA Transfer Time 10ms (for personal computers) 20ms (for home appliances) Wave form Pure Sine Wave BATTERY & AC CHARGER Battery Voltage 24VDC 48VDC Floating Charge Voltage 27VDC 54VDC Overcharge Protection 31VDC 61VDC Maximum charge current 80A SOLAR CHARGER MAX.PV Array Power 5000W 6000W MPPT Range@ Operating Voltage 90-450VDC Maximum PV Array Open  Circuit Voltage 500VDC Maximum Charging Current 110A Maximum Efficiency 98% PHYSICAL Dimension.D*W*H(mm) 472*297*129mm Net Weight (kgs) 9.5kg 10.5kg Communication Interface RS485/RS232(Standard)/LCD remote/WIFI(Optional) OPERATING ENVIRONMENT Humidity 5% to 95% Relative Humidity(Non-condensing) Operating Temperature -10°C to 55°C Storage Temperature -15°C to 60°C More Details:
