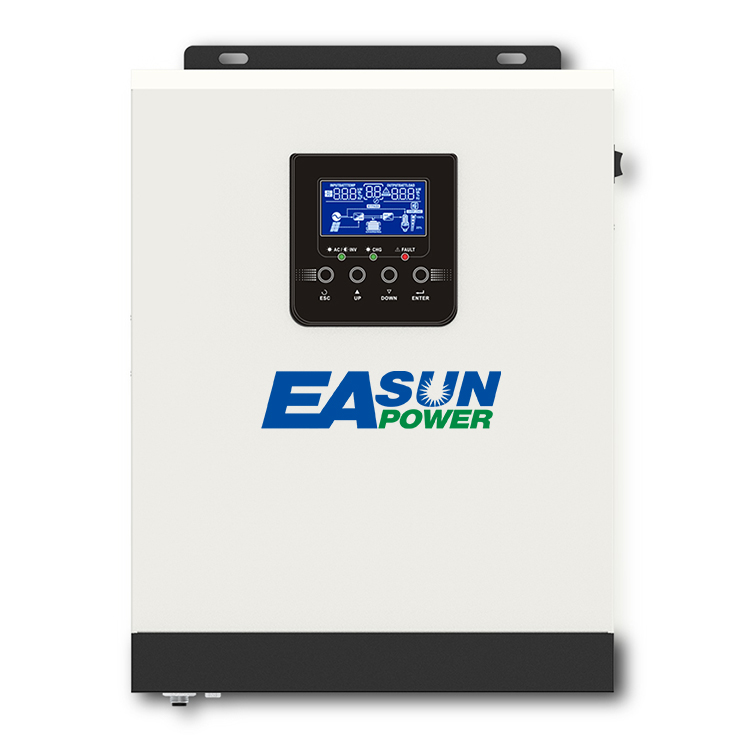

230VAC 3KW Off Grid Home Solar System Inverter LCD Display w/ Built-in MPPT Solar Charger Controller

Description 230VAC 3KW Off Grid Home Solar System Inverter LCD Display w/ Built-in MPPT Solar Charger Controller Item Specification: MODEL Isolar SMH 3KW Rated Power 3000VA/2400W INPUT Voltage 230VAC Selectable Voltage Range 170-280VAC(for personal computers) 90-280VAC(for home appliances) Frequency Range 50Hz/60Hz (Auto sensing) OUTPUT AC Voltage Regulation (Batt.Mode) 230VAC±5% Surge power 6000VA Efficiency(Peak) 93% Transfer Time 10ms (for personal computers) 20ms (for home appliances) Wave form Pure Sine Wave BATTERY Battery Voltage 24VDC Floating Charge Voltage 27VDC Overcharge Protection 31VDC SOLAR CHARGER Maximum PV Array Power 1000W Maximum PV Array Open Circuit Voltage 102VDC MPPT Range @ Operating Voltage 30-80VDC Maximum Solar Charging Current 40A Maximum AC Charging Current 20A or 30A Maximum Charging Current (Utility Charging Solar Charging)   70A Standby Power Consumption 2W Maximum Efficiency 98% PHYSICAL Dimension.D*W*H(mm) 305*272*100 Net Weight (kgs) 5.2kg OPERATING ENVIRONMENT Humidity 5% to 95% Relative Humidity(Non-condensing) Operating Temperature 0°C to 55°C Storage Temperature -15°C to 60°C More Details:
