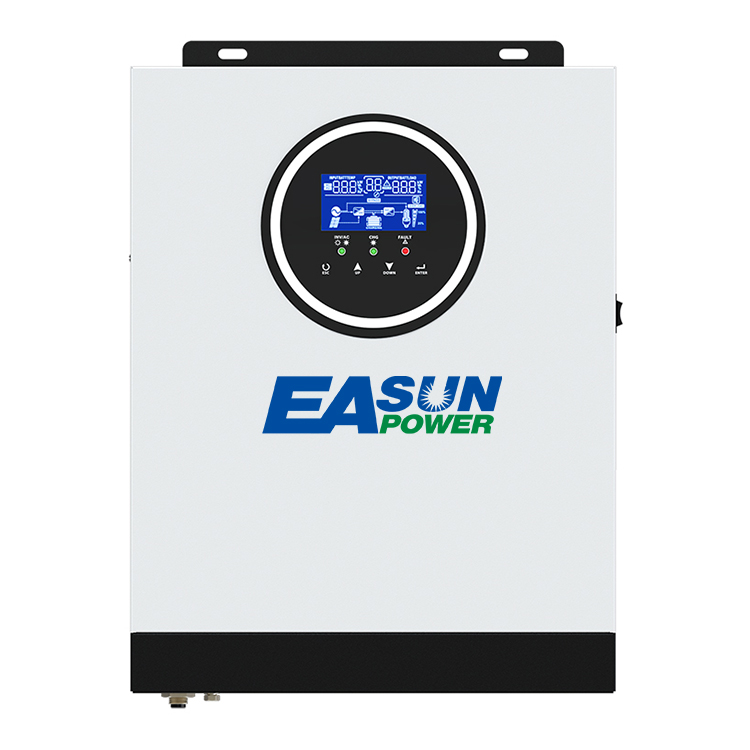

230VAC 50/60HZ Off-Grid MPPT Photovoltaic Inverter 2.2/3.2KW Max PV Input 450VDC/3000W

Description 230VAC 50/60HZ Off-Grid MPPT Photovoltaic Inverter 2.2/3.2KW Max PV Input 450VDC/3000W Items Specification: MODEL Isolar SMH 2.2KW Isolar SMH 3.2KW Rated Power 2200VA/1800W 3200VA/3000W INPUT Voltage 230VAC Selectable Voltage Range 170-280VAC(for personal computers) 90-280VAC(for home appliances) Frequency Range 50Hz/60Hz (Auto sensing) OUTPUT AC Voltage Regulation (Batt.Mode) 230VAC±5% Surge power 4400VA 6400VA Transfer Time 10ms (for personal computers) 20ms (for home appliances) Wave form Pure Sine Wave BATTERY & AC CHARGER Battery Voltage 12VDC 24VDC Floating Charge Voltage 13.5VDC 27VDC Overcharge Protection 15.5VDC 31VDC Maximum charge current 60A SOLAR CHARGER MAX.PV Array Power 2000W 3000W MPPT Range@ Operating Voltage 90-450VDC Maximum PV Array Open Circuit Voltage 450VDC Maximum Charging Current 80A Maximum Efficiency 98% PHYSICAL Dimension.D*W*H(mm) 348*282*105mm Net Weight (kgs) 5.0kg 5.5kg Communication Interface RS232(Standard) GPRS/WIFI(Optional) OPERATING ENVIRONMENT Humidity 5% to 95% Relative Humidity(Non-condensing) Operating Temperature -10°C to 55°C Storage Temperature -15°C to 60°C More Details:
