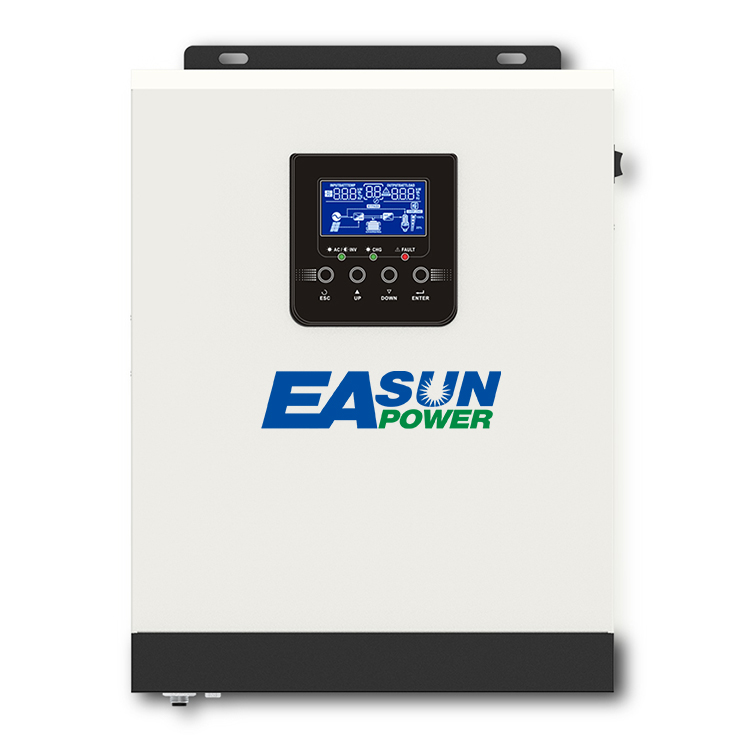

230VAC Home Use 3KW PWM Photovoltaic Inverter for Residential Sun Energy System

Description 230VAC Home Use 3KW PWM Photovoltaic Inverter for Residential Sun Energy System Item Specification: MODEL Isolar SPH 3KW Rated Power 3000VA/2400W INPUT Voltage 230VAC Selectable Voltage Range 170-280VAC(for personal computers) 90-280VAC(for home appliances) Frequency Range 50Hz/60Hz (Auto sensing) OUTPUT AC Voltage Regulation (Batt.Mode) 230VAC±5% Surge power 6000VA Efficiency(Peak) 93% Transfer Time 10ms (for personal computers) 20ms (for home appliances) Wave form Pure Sine Wave BATTERY Battery Voltage 24VDC Floating Charge Voltage 27VDC Overcharge Protection 30VDC SOLAR CHARGER Maximum PV Array Open Circuit Voltage 80VDC MPPT Range @ Operating Voltage 30-40VDC Maximum Solar Charging Current 50A Maximum AC Charging Current 20A or 30A Maximum Charging Current (Utility Charging Solar Charging)   80A Standby Power Consumption 2W PHYSICAL Dimension.D*W*H(mm) 305*272*100 Net Weight (kgs) 5.2kg OPERATING ENVIRONMENT Humidity 5% to 95% Relative Humidity(Non-condensing) Operating Temperature 0°C to 55°C Storage Temperature -15°C to 60°C   More Details:
