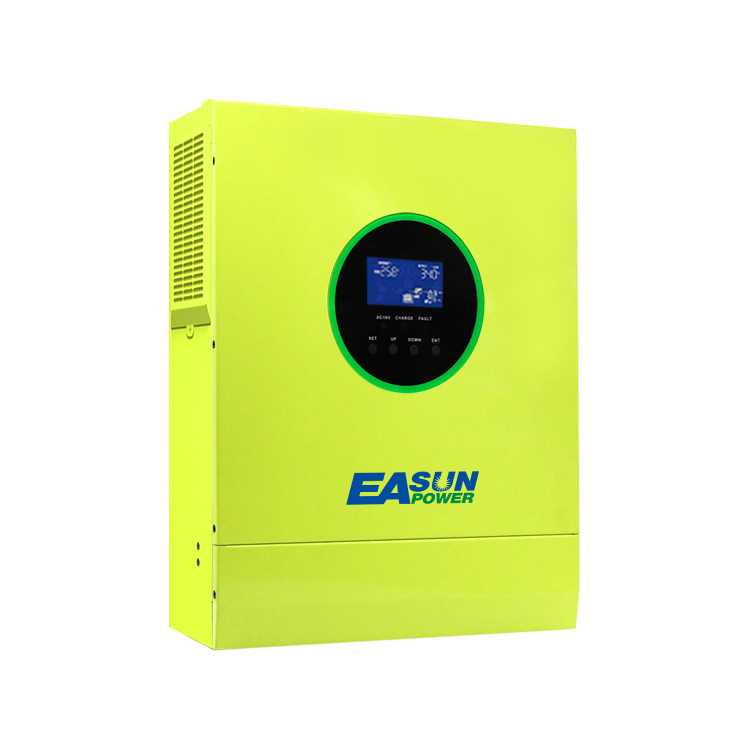

230VAC 6KW Solar Inverter 48V Pure Sine Wave MPPT 80A High PV Input Voltage 500Vdc WIFI Off Grid Solar Inverter

Description 230VAC 6KW Solar Inverter 48V Pure Sine Wave MPPT 80A High PV Input Voltage 500Vdc WIFI Off Grid Solar Inverter Item Specification: Models ISolar-SMX-II-3.6KW ISolar-SMX-II-5.6KP Number of parallel/split phases NO 1-6PCS AC mode Rated input voltage 220/230Vac Input voltage range (170Vac~280Vac) ±2%；(90Vac-280Vac)±2% Frequency 50Hz/ 60Hz (Auto detection) Frequency Range 47±0.3Hz ~ 55±0.3Hz (50Hz)/57±0.3Hz ~ 65±0.3Hz (60Hz); Overload/short circuit protection Circuit breaker Efficiency >95% Conversion time (bypass and inverter) 10ms (typical) AC reverse protection Available Maximum bypass overload current 30A 40A Inverter mode Output voltage waveform Pure sine wave Rated output power (VA) 3600 5600 Rated output power (W) 3600 5600 Power factor 1 1 Rated output voltage (Vac) 230Vac 230Vac Output voltage error ±5% Output frequency range (Hz) 50Hz ± 0.3Hz/60Hz ± 0.3Hz 50Hz ± 0.3Hz/60Hz ± 0.3Hz Efficiency >92% Peak power 6000VA 10000VA Loaded motor capability 2HP 4HP Output short circuit protection Circuit breaker Circuit breaker Bypass breaker specifications 30A 40A Rated battery input voltage 24V (Minimum starting voltage 22V) 48V (minimum start voltage 44V) Battery voltage range 20.0Vdc~33Vdc ± 0.6Vdc (Undervoltage alarm/shutdown voltage overvoltage alarm /overvoltage recovery… settable on LCD screen) Power saving mode Load ≤50W AC charging Battery type Lead acid or lithium battery Maximum charge current 80A 60A Charge voltage range 20.0Vdc~33Vdc 40~60Vdc Short circuit protection Circuit breaker and blown fuse Breaker and blown fuse Circuit breaker specifications 30A 40A Overcharge protection Alarm and turn off charging after 1 minute PV charging Maximum PV open circuit voltage 500Vdc 500Vdc PV operating voltage range 120-500Vdc 120-500Vdc MPPT voltage range 120-450Vdc 120-450Vdc Battery voltage range 20-33Vdc 40-60Vdc Maximum intput power 4000W 6000W PV charging current range (can be set) 0-80A 100A Charging short circuit protection Blown fuse Blown fuse Wiring protection Reverse polarity protection Inverse wiring protection Certified specifications Certification CE(IEC 62109-1) EMC certification level EN61000, C2 Operating temperature range -15°C to 55°C Storage temperature range -25°C ~ 60°C Humidity range 5% to 95% (Conformal coating protection) Noise ≤60dB Heat dissipation Forced air cooling, variable speed of fan Communication interface USB/CAN/RS485(WiFi/GPRS)/Dry node control Size (L*W*D) 378mm*280mm*103mm 426mm*322mm*124mm Weight (kg) 6.9 10.5   More Information:
